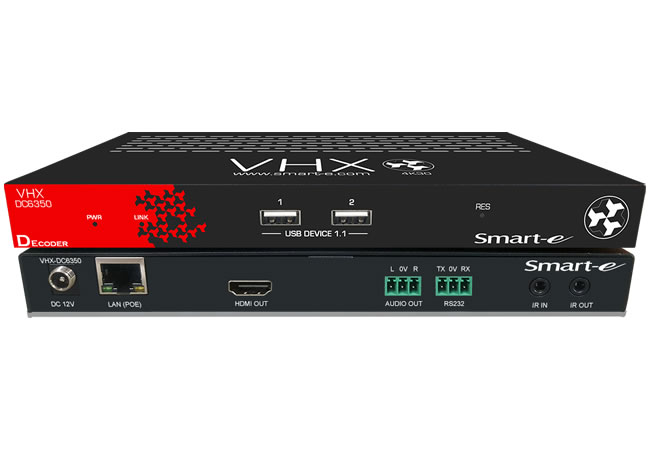

The VHX-DC6350 is a flexible and cost-effective AVoIP decoder for HDMI, audio, USB, IR and R232 signals. The unit enables high definition HDMI signals up to 1920 x 1200 resolutions to be received over a 100M or 1G Ethernet network with minimal latency and excellent visual quality.
The VHX-DC6350 decoder provides the interface and conversion between the IP stream present on the Ethernet network and the HDMI and control signal outputs. The VHX-DC6350 is able to convert the compressed H.265/264 stream back to the original HDMI signal and output it as a 1080p resolution video up to 60Hz frame rate. The unit also has an output scaler enabling the video to be adjusted to the native resolution of the connected display.
Video streaming is compatible with a standard 1G Ethernet IGMP switcher using the Unicast and Multicast protocols. Point to point, point to multipoint and matrix switching can be achieved easily using industry standard Ethernet switchers and installation enhanced with the POE feature. Switching is fast and seamless giving a professional broadcast experience. A USB host connection to the VHX-EN6350 encoder allows a computer to extend USB V1.1 signals to a VHX-DC6350 decoder which can provide the facility for up to 5 peripherals to be added. Other control signals can also be transmitted over the same network which can be used for RS232, infrared and CEC signals.
The VHX-DC6350 together with the encoder VHX-EN6350 provide a highly scalable and cost-effective solution for distributing HD video and control signals for a multitude of applications. Video walls can also be created with multiple decoders up to a 9×9 system.
 |
|
Smart-e VHX-EN6350 1080p Encoder
Technical Details
Download the data sheet |
